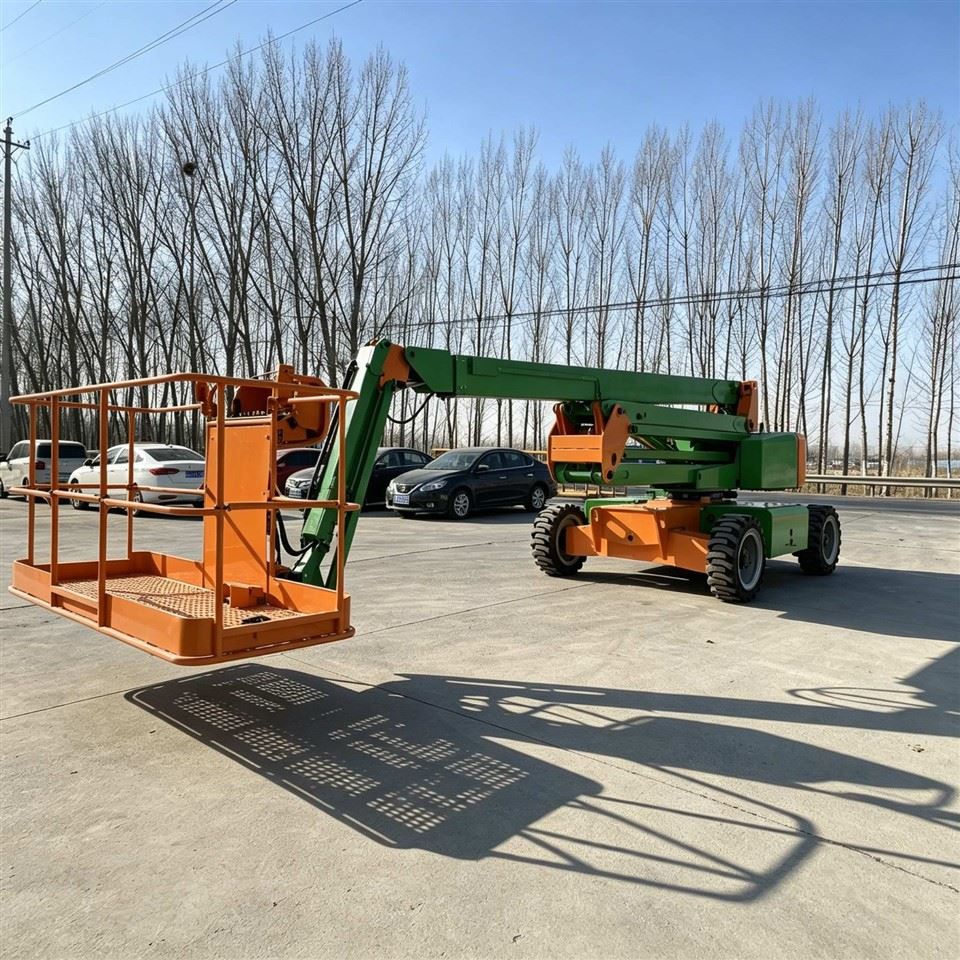

Self Propelled Boom Lift

High -kev ua tau zooSelf Propelled Boom Liftnrog kev ua haujlwm yooj yim, zoo heev lifting muaj peev xwm thiab txhim khu kev qha stability. Haum rau kev tsim kho, khoom siv installation, kho tsev rau khoom thiab lwm yam kev ua haujlwm siab.

Tus kheej -propelled & yooj yim rau kev khiav lag luam

Hauv Tshuag

Shipping thoob ntiaj teb muaj

Siab zoo

cov cuab yeej siv siab heev

pab neeg tshaj lij

ib - nres kev daws teeb meem

Khoom Description

Parameter
Specifications
Max. Ua haujlwm siab	23.8m
Max. Platform Qhov siab	21.8m
Max. Span Qhov siab	17m
Qhov Kev Tshaj Tawm Tshaj Tawm Tshaj Tshaj Tshaj Tshaj Tshaj Tshaj Tshaj Tshaj Tshaj Tshaj Tshaj Tshaj Tshaj Tshaj Tshaj Tshaj Tshaj Tshaj Tshaj Tshaj	11m
A. Tag Nrho Ntev	11m
B. Dav dav	2.5m
C. Tag Nrho Qhov Siab	2.765m
Ua Haujlwm Platform Dimensions (L x W)	2.44×0.9m
D. Wheelbase	2.51m
Track dav	2.14m
E. Av Clearance (Center)	0.4m
Productivity
Rated Load (tsis txwv / txwv)	300kg / 450kg
Lub kaum sab xis tig lub kaum sab xis	360 degree
Tail Swing	1.4
Platform Swing Amplitude	180 degree
Forearm Swing Amplitude	130 degree
Qhov siab tshaj plaws tso cai Chassis Angle	5℃/ 5 degree
Yam tsawg kawg Turning Radius (Inner/Outer Log)	1.9m/3.9m
Maximum Gradeability (Twj / Hydraulic)	45%/24%
Hom tsav tsheb	4 × 4 (4WD, 4-log steering, roob ris taug kev)
Hom log tsheb	Ua npuas ncauj puv log
Tyre Loj	355/55D625
Fais fab (Diesel Cav Yeem)
Roj teeb	80V / 350Ah
Charger	80V/80A
Tsav Tsav	AC 54 V
Lifting Tsav	AC 56 V
Hydraulic Roj Tank	120L
Qhov hnyav
Zuag qhia tag nrho	12 300 Kg

Khoom Description

2026082613452225817

Tsis muaj.	Configuration Item
1	Full proportional tswj
2	Action suab thiab lub teeb ceeb toom
3	Platform tus kheej - xauv
4	Kev kub ntxhov ceev
5	Thaum muaj xwm ceev nres
6	Tiv thaiv compression
7	Platform tsis siv neeg leveling
8	Qhov taw qhia yuam kev
9	Tilt tiv thaiv
10	Ntsuas qhov system
11	Platform kev sib hloov
